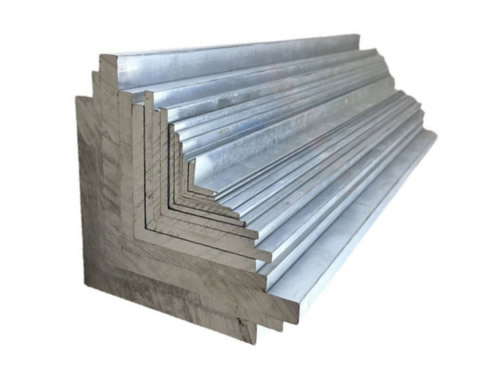

Aluminum Angle Bar

Aluminum angles have the same shape as steel angles, but when comparing steel angles to aluminum angles, you will notice a difference between the two materials. Sometimes described as structural aluminum angle, this is a lightweight option that is highly corrosion resistant. It can be used within radius corners and has a variety of structural applications. The great thing about aluminum angle is that it is very easy to weld, so it may be a good choice for a variety of your future projects.

Phone ：+8613563585707

WhatsApp : +8613563585707

Email : tina@sd-tisco.com

Product Parameters

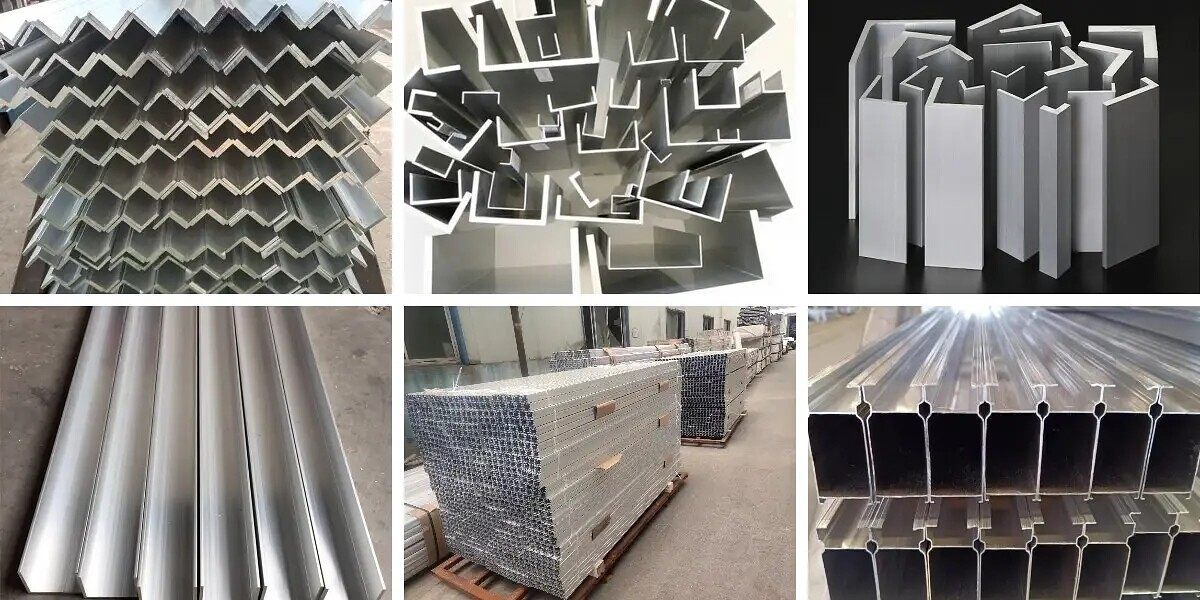

Product Display

Product Application

Product Packaging

Factory Display

Faq

Product Name	Aluminum Angle Bar
Production Process	Cold Drawn,Cold Rolled,Bright Anneal etc
Certifications	ISO 9001
Size	5.5-110mm(Hot rolled),2-50mm(Cold drawn),110-500mm(Forged)
Standard	ASTM EN DIN GB ISO JIS
Tolerance	+/-0.05 ~+/0.02
Surface	Pickling,Bright; No.1,2B,NO.4,BA,8K Satin,Brush,Hairline,Mirror,Polished 180 grits,320 grits,400 grits,600 grits,800 grits polished
Application	Constructions feilds and ship building industries.Petroleum,Chemical industries,War and electiciy industries.Food processing and medical industries.Boiler heat cxchangers,Machinery and hardware feilds.
Materials	Aluminum:1A99,1A97,1A95,1A90,1060,1050,2024,3003,3005,4033,5005,5052,5082,5083,6060, 6061,6063,6082,7050,7075,8090.300series:301,303/Cu,304/L/H,304Cu,305,309/s,310/S,316/L/H/Ti,321/H,347/H,330,400 series: 409/L,410,416/F420/F430,431,440C,441,444,446,600 series:13-8ph,15-5ph,17-4ph,17-7ph(630,631),660A/B/C/DDuplex:2205(UNS S31803/S32205),2507(UNS S32750),UNSS32760,2304,LDX2101.LDX2404,LDX4404.904LOthers:153Ma,254SMo,253Ma,654SMo,F15,Invar36,1122,N4,N6 etcAlloy : Alloy 20/28/31; Hastelloy:HastelloyB/B-2/B-3/C22/C-4/S/C276/C-2000/G-35/G-30/X/N;Haynes:Haynes 230/556/188; Inconel:Inconel 100/600/601/602CA/617/625713/718738/X-750,Carpenter 20; Incoloy:Incoloy 800/800H/800HT/825/925/926; GH:GH2132,GH3030,GH3039,GH3128,GH4180,GH3044

Material	1060	2011	2014	2017	2024	3003	5052	5056
Temper	/	T3-T4	T3-T4	T3-T4	T3-T4	O	O	O
Share	All Share	Round				Hollow tube	According to the drawings
Surface treatment	Mill Finished
Size	20-270mm	20-160mm				7-200mm	30-100mm
Min. Thickness	1.2mm	5mm				0.8mm	5mm
Hardness	25-35HV	105-130HB				25-35HB	45-55HB
MOQ	500kg	1000kg				1000kg	3000kg
Color	Ref powder coating color sheet and customized color available

Material	6005	6006	6463	6061	6063	6066	6082
Temper	T5-T6	T5-T6	T5-T6	T6	T5-T6	T6	T6
Share	All Share
Surface treatment	Mill Finished		Polished	Anodized
				Powder Caoting
				Wood Grain
	Anodized			Brushed
				Electrophoresis
				Polished
Size	10-500mm
Min. Thickness	0.8mm
Hardness	85-105HB		75-90HB	95-105HB	60-80HB	110-120HB	95-105HB
MOQ	500kg
Color	Ref powder coating color sheet and customized color available

Material	7003	7005	7116	7046	7050	7075
Temper	T6	T6	T6	T6	T6	T6
Share	All Share	Round	Round	Round	Round	Round
Surface treatment	Mill Finished or Special Anodized
Size	10-350mm			20-160mm
Min. Thickness	2mm		5mm
Hardness	110-120HB	95-105HB	140-160HB
MOQ	1000kg				15000kg	1000kg
Color	Ref powder coating color sheet and customized color available

Surface Treatment Performance
Length	2M-6M	1M-2M	100MM-1M	100MM<=
Cutting tolerance	10mm	±1mm	±0.2mm	±0.15mm
Extrusion process performance	6063-T5
Yield strength	RP 0.2>=160 MM2
Elongation	A 10>=10%
Oxidation process performance
Oxide film thickness	Minimum average film thickness		Minimum localized film thickness
AA10	10um		8um
AA15	15um		12um
AA20	20um		16um
AA25	25um		20um
Oxide film thickness levels:	Corrosion resistance.			Wear resistance.
	CASS Test		Alkali drip test.	Abrasion coefficient in sandfall test. g/um
	Time H	Level
AA10	16	≥9	≥50	≥300
AA15	32	≥9	≥75	≥300
AA20	56	≥9	≥100	≥300
AA25	72	≥9	≥125	≥300
Technical performance of Wood Grain on aluminum profiles:
Gloss value	>=80 GU		80<=GU
Gloss tolerance	±10 GU		±7 GU
Color difference	E* ab<=1.5
Decorative surfacecoating thickness	Maximum localized thickness		Minimum localized thickness
Coating thickness	<=120um		>=40um
Coating indentation hardness	Resistance to indentation>=80
CASS test	Protection gradeR>=9.5

Q: Are You Manufacture or Trade Company?

A: We are the professional manufacturer of steel products located in Hebei province, China. Welcome to contact us and visit our factory before you place orders.

Q: How do you guarantee the quality?

A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.

Q: Can I get free samples?

A: We are the professional manufacturer of steel products located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.

Q: Are You Manufacture or Trade Company?

A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.

Q: What is the MOQ?

A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.

Q: Can you OEM or ODM?

A: Yes, we have a strong developing team. The products can be made according to your request
